E-610 Piezo Amplifier / Servo Controller
1-Channel OEM Module with Optional Position Control
- Inexpensive 1-channel OEM solution
- Closed-loop and open-loop versions
- Notch filter for higher bandwidth
- Position control for SGS, LVDT, and capacitive sensors
- Peak current 140 mA
OEM modules for low-voltage piezo actuators

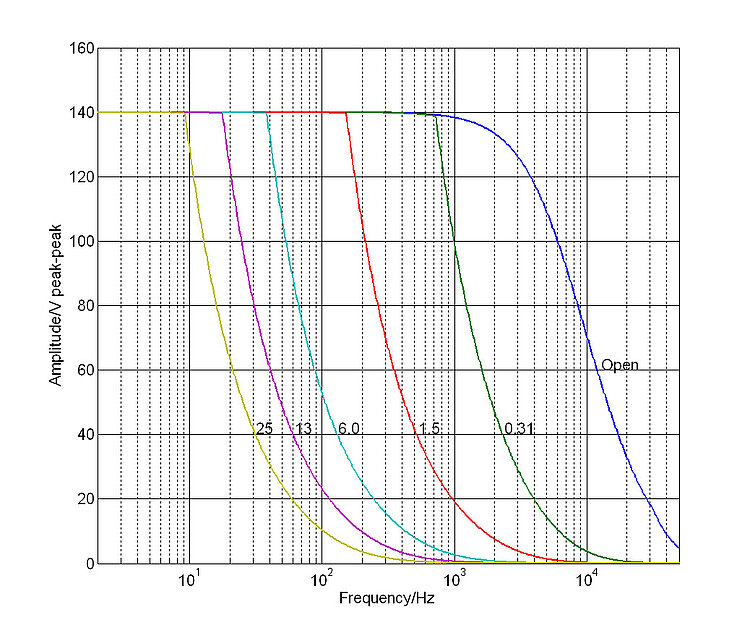

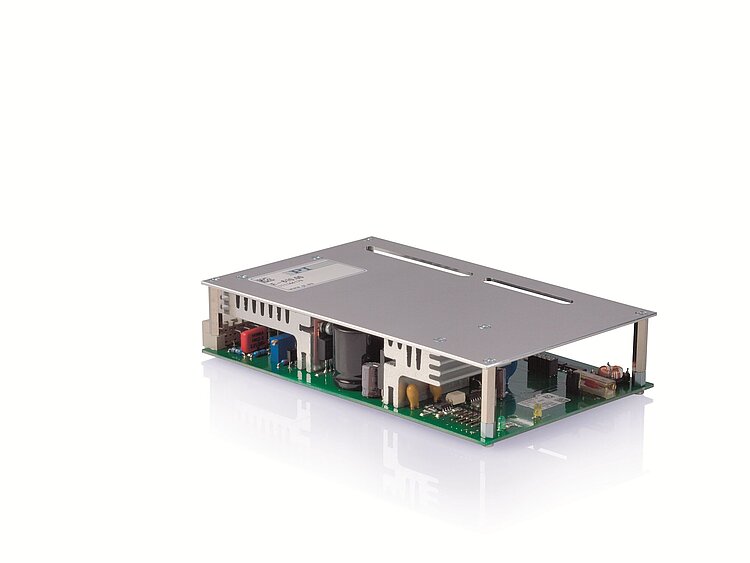

E-610 amplifier / servo controller modules are designed for operating low-voltage piezo actuators and positioning systems. They are equipped with an integrated low-noise piezo amplifier that can input and output peak currents of 140 mA in the low-voltage range. Four versions are available: E-610.00 (amplifier only) as well as the E-610.S0, E-610.L0, and E-610.C0 versions with additional components for control as well as measuring the position. The E-610.S0 was designed for piezo mechanics with strain gauge positioning sensors, the E-610.L0 for systems with LVDT sensors, and the E-610.C0 for systems with capacitive sensors.
Closed-loop and open-loop piezo positioning
The E-610 modules offer precision control of piezo actuators and piezo positioning systems both in closed-loop and voltage-controlled operation. The piezo controllers already have electronics for position sensing and position control. The control signal controls the piezo position directly. A positioning accuracy and repeatability in the nanometer range is therefore possible depending on the piezo mechanics and the sensor type.
Control via PC
The E-621 and E-625 models are available for control via a digital PC interface. Alternatively, analog control is possible from the PC via D/A converter. PI offers a full driver set for use with NI LabVIEW software for certain D/A converter boards from National Instruments.
Specifications
Specifications
Interfaces and operation | E-610.00 | E-610.C0 / E-610.S0 / E-610.L0 |
---|---|---|
Input / output | 32 (m) on the rear side (DIN 41612 / D) | 32 (m) on the rear side (DIN 41612 / D) |
Piezo connection socket | LEMO | LEMO |
Sensor connector | – | LEMO |
Sensor monitor output | – | 0 – 10 V |
DC offset setting | External potentiometer (not in the scope of delivery), adds 0 to 10 V to the input voltage | External potentiometer (not in the scope of delivery), adds 0 to 10 V to the input voltage |
Downloads
Datasheet
Documentation
User Manual PZ72
E-610.C0 Piezo Controller / Amplifier (OEM)
User Manual PZ70
E-610.S0, E-610.L0, E-610.00 Piezo Controller / Amplifier (OEM)

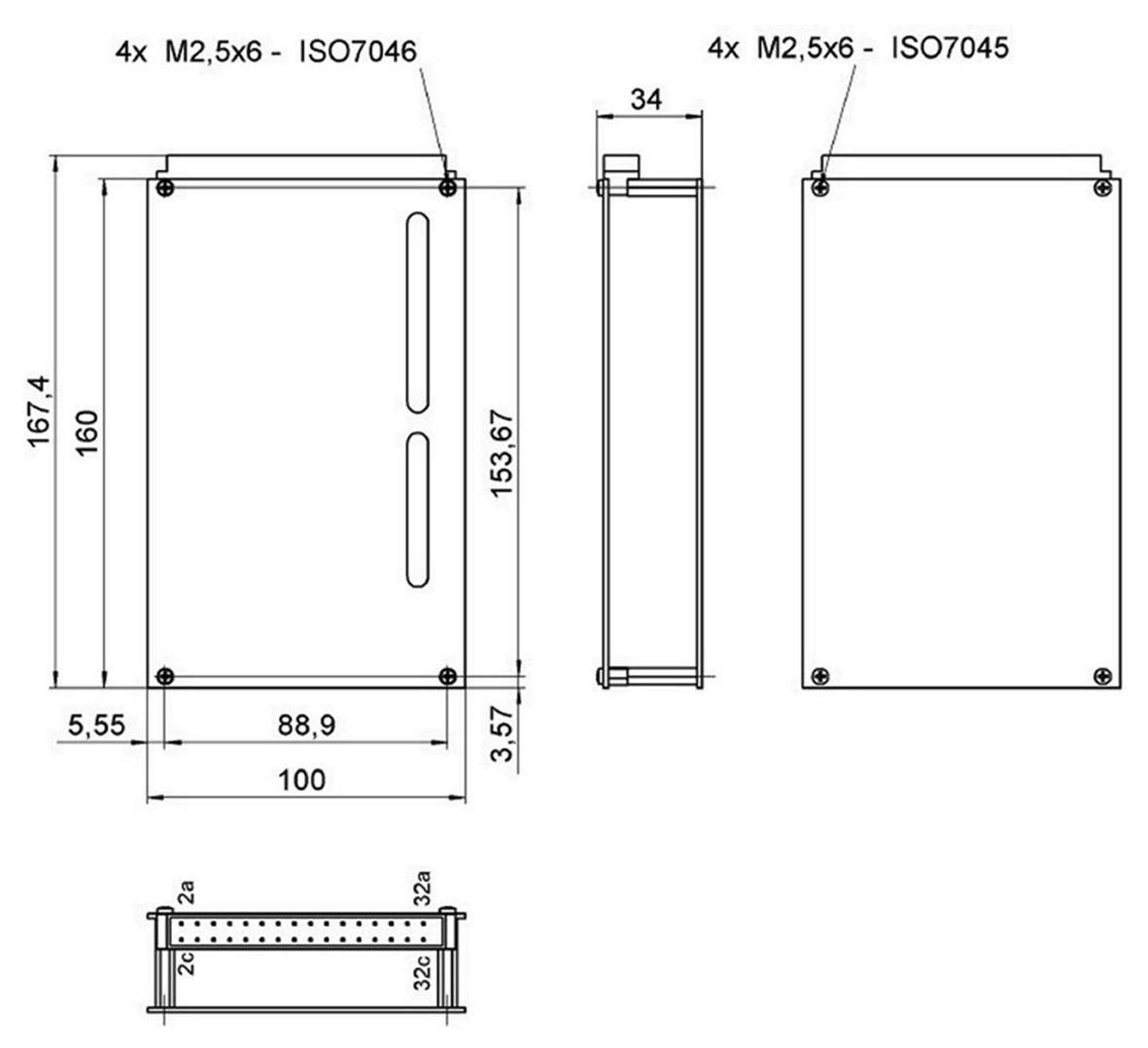

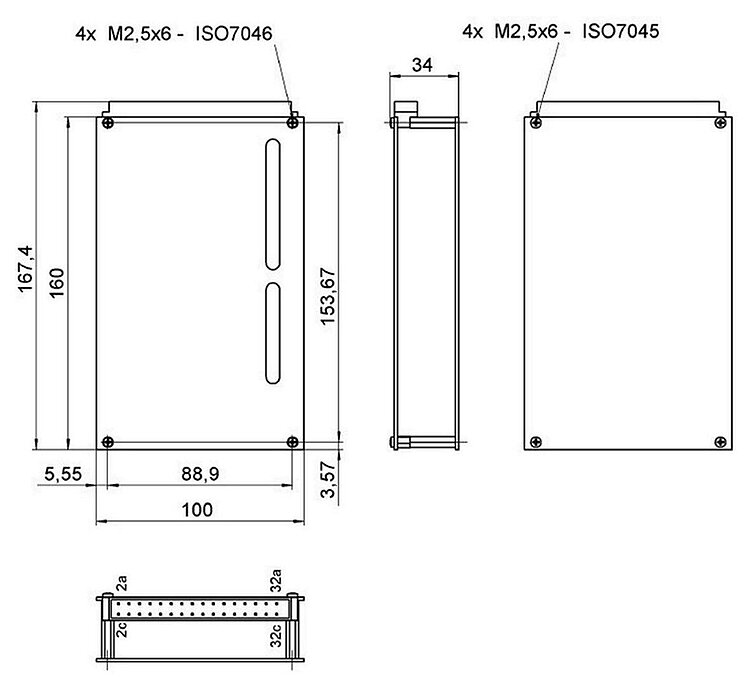

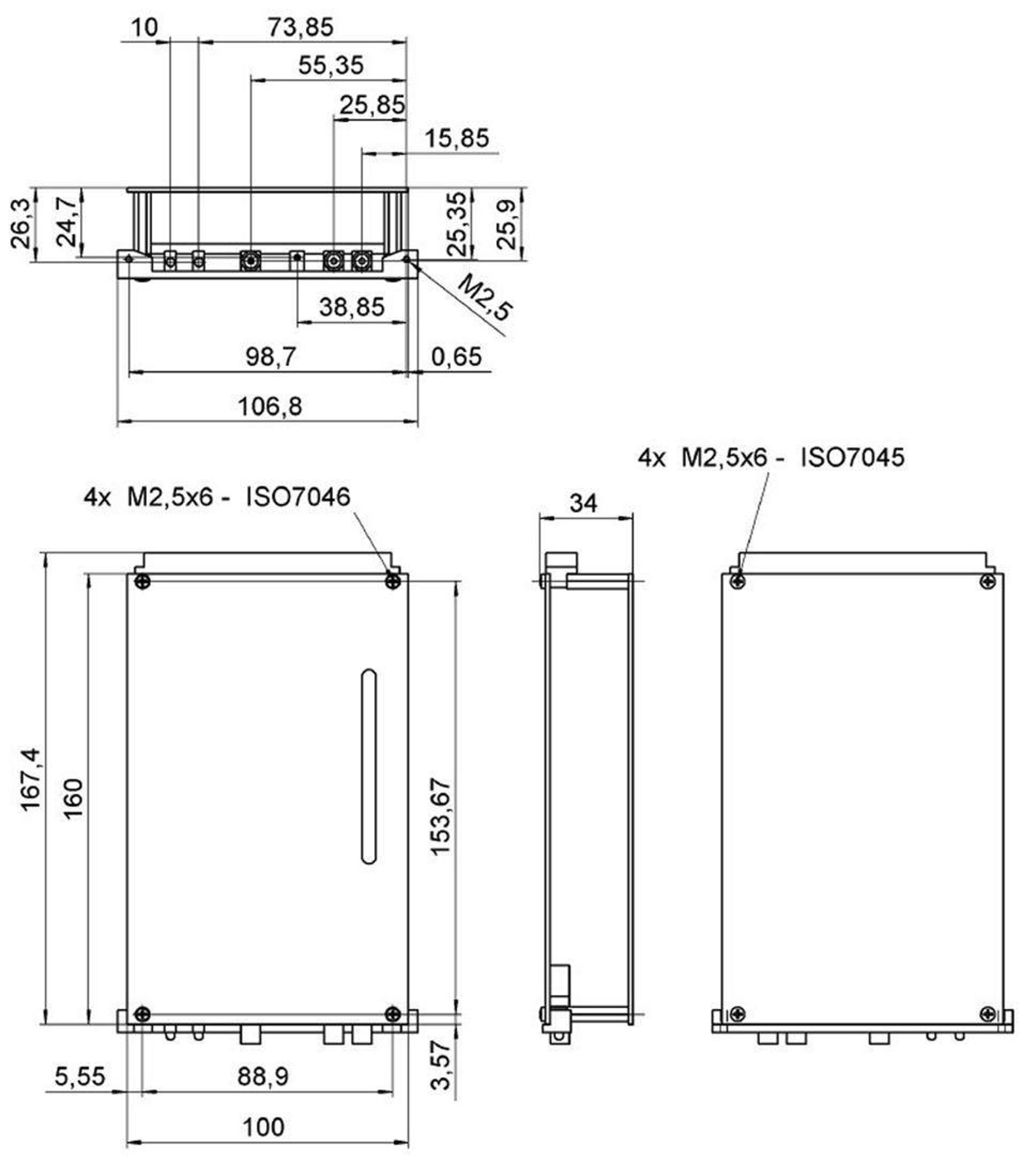

3D Models
3-D model E-610.x0
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
