Stages Lineari Miniaturizzati

Stages Lineari Miniaturizzati

Gli stages miniaturizzati sono essenziali in applicazioni di posizionamento con limitato spazio a disposizione. Soluzioni con motori piezo quali il Q-motion®, il PILine® e il PiezoWalk®, consentono di realizzare stages più compatti grazie al principio dell'azionamento diretto. Gli stages PI con motore elettromagnetico sono presenti e già collaudati in tutto il mondo nell'ambito dell'automazione. Chiedi la tua personalizzazione!

Stages Miniaturizzati con dispositivi Q-Motion®, PILine® e PiezoWalk®

U-523 PILine® Linear Stage

Compact Linear Stage with Ultrasonic Piezo Motor

Q-521 Q‑Motion® Miniature Linear Stage

Smallest Linear Stage with Position Control, High Resolution and Affordable Price

U-521 PILine® Linear Stage

Compact Linear Stage with Ultrasonic Piezo Motor

Q-545 Q‑Motion® Precision Linear Stage

High Forces and Small Design Due to Piezo Motors

Stages Miniaturizzati con PIMag® VC VoiceCoil e Motori a 3 Fasi, Lineari, Stepper, DC e DC Brushless

Novità

A-143 PIglide Miniature Linear Air Bearing Stage

High Performance • Cleanroom-Compatible • Option for Vertical Mounting

A-142 PIglide Voice Coil Linear Stage with Air Bearings

High Performance • Cleanroom-Compatible • Option for Vertical Mounting
  • High performance
  • Possible vertical mounting
  • Motion platform 75mm × 80mm
  • Travel ranges up to 10mm
  • Acceleration up to 20 m/s

M-110.C86311 Linear Stage System

Compact Linear Stage, DC Gear Motor, 5 mm Travel Range, with Controller

M-110 • M-111 • M-112 Compact Linear Stage

XY(Z) Combinations with a Variety of Drives and Travel Ranges

L-306 Compact Precision Z Stage

Compact Design, Multi-Axis Combinations

L-505 Compact Linear Stage

With DC or Stepper Motor

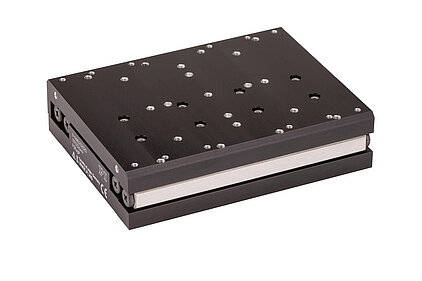

V-408 PIMag® Linear Stage

Inexpensive, with Linear Motor

V-508 High-Precision, Low-Profile Linear Motor Stage

Nanopositioning Performance and High Speed in a Compact, Affordable Stage Design

A-141 PIglide MB Miniature Linear Stage with Air Bearings

High Performance, Cleanroom Compatible, Customizable
  • High performance
  • Clean room compatible
  • Motion platform 57mm × 93mm
  • Travel ranges up to 35mm
  • Acceleration up to 3,5m/s

V-522 • V-524 • V-528 PIMag® High Dynamics Linear Stage

Voice Coil Direct Drive with Direct Position Measuring

M-122.2DD1 Microtranslation Stage

Compact Linear Stage with Direct Position Measuring

M-105 Microtranslation Stage

Precision Crossed Roller Guides, PiezoMike Option, XY(Z) Combinations

L-406 Compact Linear Stage

For Loads to 10 kg
