Gli attuatori lineari motorizzati sono indispensabili nelle routines di automazione, dalla produzione industriale fino alle regolazioni nei laboratori di ricerca.

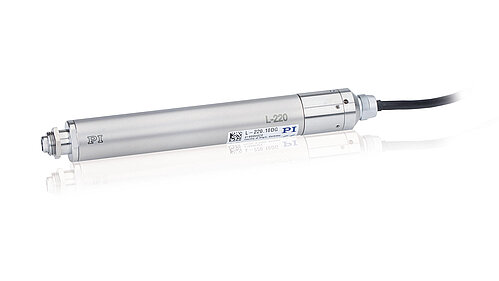

L-220 High-Resolution Linear Actuator
Suitable for High Cycle Numbers
Travel range: 13 mm to 77 mm
Drive force: 125 N
Bidirectional repeatability: 2 µm
Max. velocity: to 3.5 mm/s

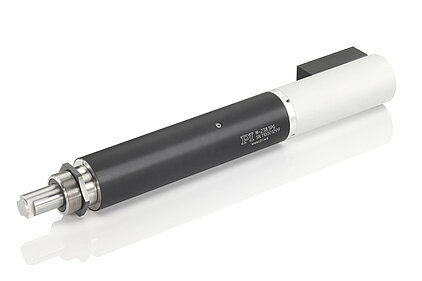

M-238 High-Load Linear Actuator
Dynamic, High-Resolution Precision Drive with DC Motor and Direct Position Measuring
Travel range: 50 mm
Drive force: 400 N
Unidirectional repeatability: to 0.3 µm
Max. velocity: 30 mm/s

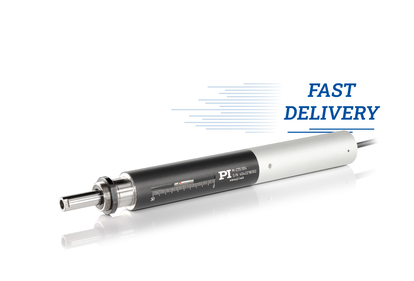

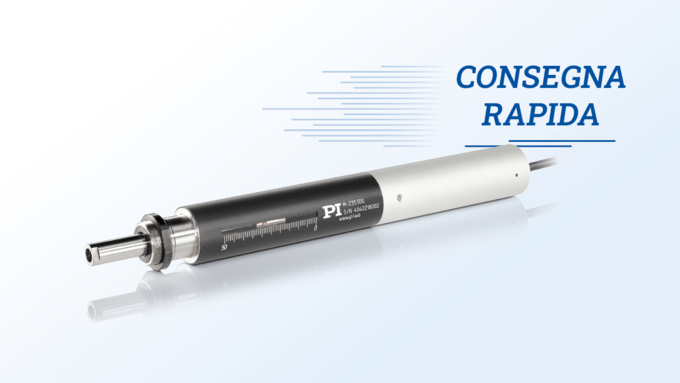

M-235 High-Resolution Linear Actuator with DC Motor
Highly dynamic, high forces up to 120 N
Travel range: 20 mm to 50 mm
Drive force: to 120 N
Unidirectional repeatability: to 0.1 µm
Max. velocity: to 30 mm/s

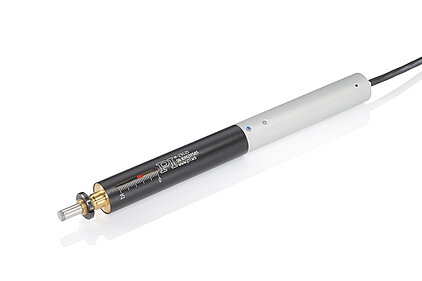

M-230 High-Resolution Linear Actuator, DC or Stepper Motor
Nonrotating Tip, Limit Switches
Travel range: 10 mm to 25 mm
Drive force: to 70 N
Unidirectional repeatability: 0.1 µm
Max. velocity: to 1.2 mm/s

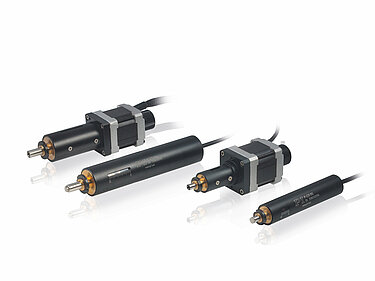

M-228 • M-229 High-Resolution Linear Actuator with Stepper Motor
Compact and Particularly Inexpensive
Travel range: 10 mm to 25 mm
Drive force: to 80 N
Unidirectional repeatability: 2 µm
Max. velocity: to 4 mm/s

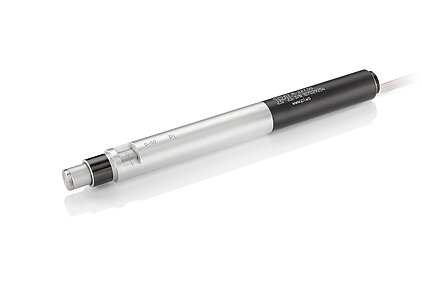

M-227 High-Resolution Linear Actuator with DC Motor
