High-resolution linear actuator with DC or stepper motor; DC gear motor; 10 mm travel range; 70 N feed force; 0.8 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length

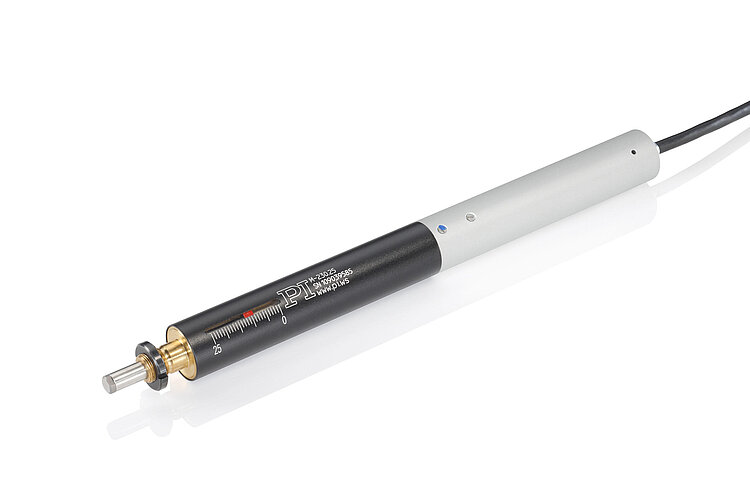

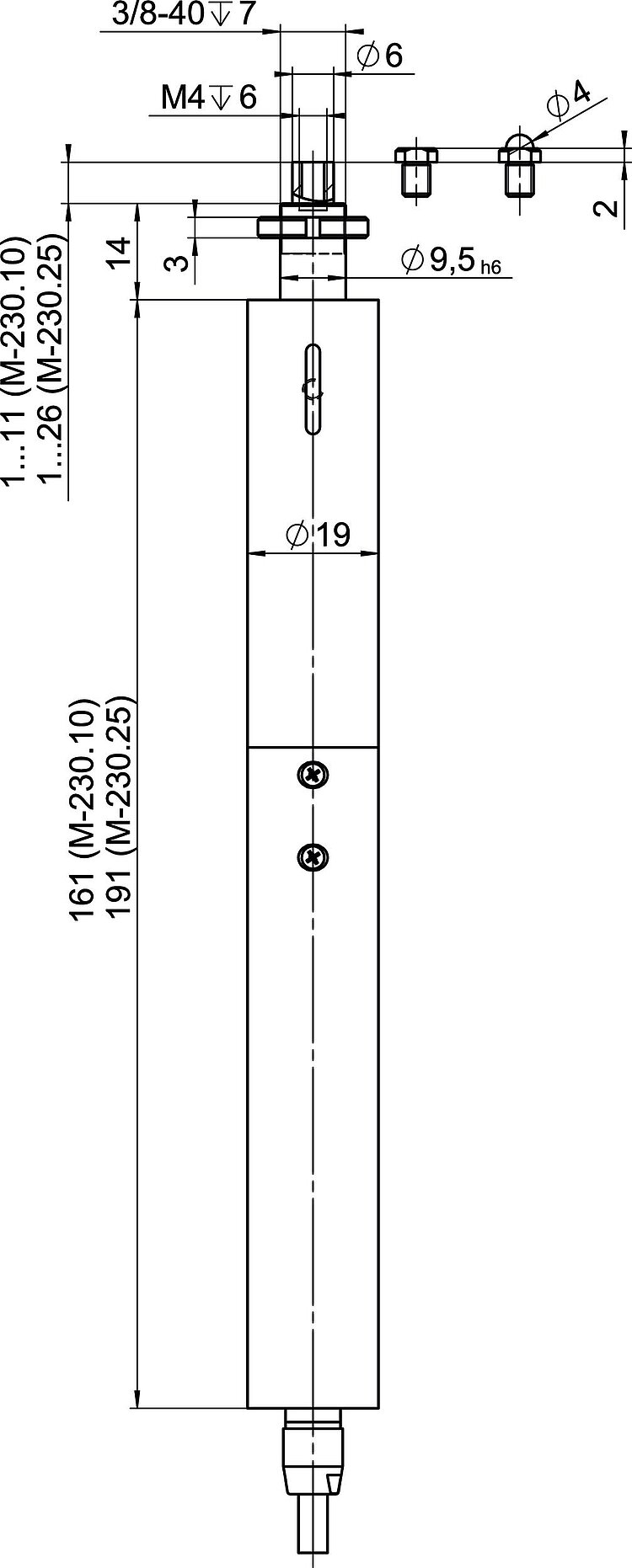

M-230 High-Resolution Linear Actuator, DC or Stepper Motor
Nonrotating Tip, Limit Switches
- Minimum incremental motion 0.05 µm
- Travel ranges 10 and 25 mm
- Nonrotating tip
- Velocity up to 1.2 mm/s
- MTBF >20000 h
Precision-class linear drive
High-resolution linear actuator. Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion and repeatability of just 100 nm. Powerful and low-vibration 2-phase stepper motors with gearhead allow for smooth and accurate open-loop positioning.
High-quality components

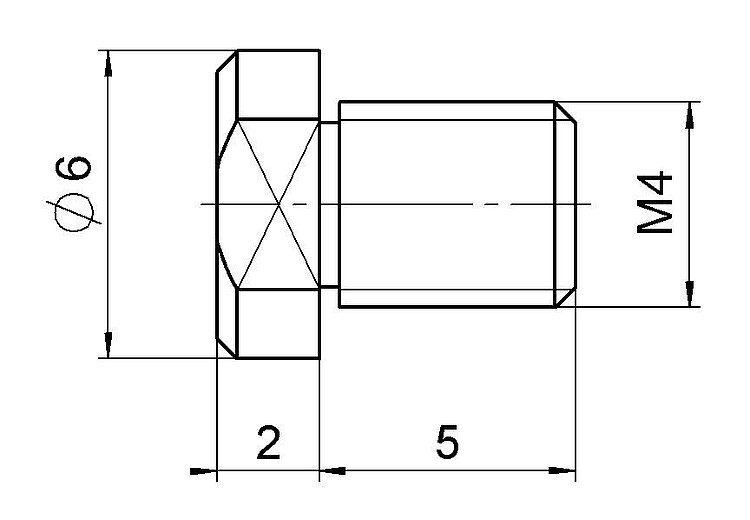

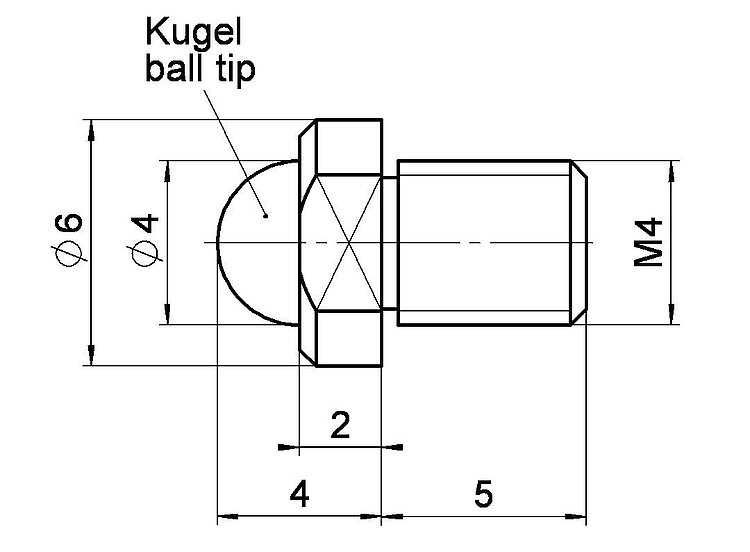

Extremely low-friction and backlash-free construction. Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Incl. flat and spherical tip for decoupling forces. Noncontact limit switches protect the mechanics. Position-controlled variants with differential encoder driver in the connector for safe signal transfer over distances up to 10 m.
Application fields
Precision alignment, motorized alternative for micrometer screws.
Specifications
Specifications
Motion | M-230.10 | M-230.25 | M-230.10S | M-230.25S | Tolerance |
---|---|---|---|---|---|
Active axes | X | X | X | X | |
Travel range in X | 10 mm | 25 mm | 10 mm | 25 mm | |
Maximum velocity in X, unloaded | 0.8 mm/s | 0.8 mm/s | 1.2 mm/s | 1.2 mm/s | |
Positioning | M-230.10 | M-230.25 | M-230.10S | M-230.25S | Tolerance |
Minimum incremental motion in X | 0.05 µm | 0.05 µm | 0.1 µm | 0.1 µm | typ. |
Unidirectional repeatability in X | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm | ± 0.1 µm | typ. |
Backlash in X | 2 µm | 2 µm | 2 µm | 2 µm | typ. |
Reference switch | Hall effect | Hall effect | Hall effect | Hall effect | |
Reference switch repeatability | 1 µm | 1 µm | 1 µm | 1 µm | |
Limit switches | Hall effect | Hall effect | Hall effect | Hall effect | |
Integrated sensor | Incremental rotary encoder | Incremental rotary encoder | |||
Sensor resolution | 2048 Cts./rev. | 2048 Cts./rev. | |||
Drive Properties | M-230.10 | M-230.25 | M-230.10S | M-230.25S | Tolerance |
Drive type | DC gear motor | DC gear motor | 2-phase stepper motor with gearhead | 2-phase stepper motor with gearhead | |
Operating voltage | 0 to ±12 V | 0 to ±12 V | 24 V | 24 V | |
Drive force in X | 70 N | 70 N | 45 N | 45 N | typ. |
Motor resolution | 24 Full steps/rev. | 24 Full steps/rev. | |||
Mechanical Properties | M-230.10 | M-230.25 | M-230.10S | M-230.25S | Tolerance |
Permissible push force in Y | 30 N | 20 N | 30 N | 20 N | max. |
Drive screw type | Trapezoidal drive screw | Trapezoidal drive screw | Trapezoidal drive screw | Trapezoidal drive screw | |
Drive screw pitch | 0.4 mm | 0.4 mm | 0.4 mm | 0.4 mm | |
Gear ratio i | 42,92063 : 1 | 42,92063 : 1 | 28,44444 : 1 | 28,44444 : 1 | |
Overall mass | 300 g | 350 g | 300 g | 350 g | |
Material | Anodized aluminum,·chrome steel, brass | Anodized aluminum,·chrome steel, brass | Anodized aluminum,·chrome steel, brass | Anodized aluminum,·chrome steel, brass | |
Miscellaneous | M-230.10 | M-230.25 | M-230.10S | M-230.25S | Tolerance |
Operating temperature range | -20 to 65 °C | -20 to 65 °C | -20 to 65 °C | -20 to 65 °C | |
Connector | D-sub 15-pin (m) | D-sub 15-pin (m) | D-sub 15-pin (m) | D-sub 15-pin (m) | |
Cable length | 0.5 m | 0.5 m | 0.5 m | 0.5 m | |
Recommended controllers / drivers | C-863.12 C-885 with C-863.20C885 C-884 | C-863.12 C-885 with C-863.20C885 C-884 | C-663.12 C-885 with C-663.12C885 | C-663.12 C-885 with C-663.12C885 |
