Motori Piezo Ultrasonici PILine®

Compact Drives, Fast and Self-Locking

Linear and rotary motion
Basically unlimited travel ranges
Easy mechanical integration
Holding force up to 15 N, holding torque up to 0.3 Nm
Velocity to 500 mm/s, resolution to 2 nm

Motor-spindle combinations convert the rotary motion of the motor into linear motion, whereby the response times are delayed due to the backlash between the mechanical components. Drives such as PILine® however generate linear motion directly, with greater stability and less inertia.

PILine® drives dispense with the mechanical complexity of classical rotary motor/gear/spindle combinations in favor of costs and reliability. These components can be very susceptible to wear, especially in miniaturized systems.

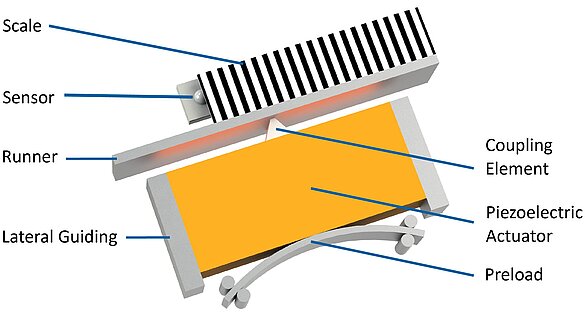

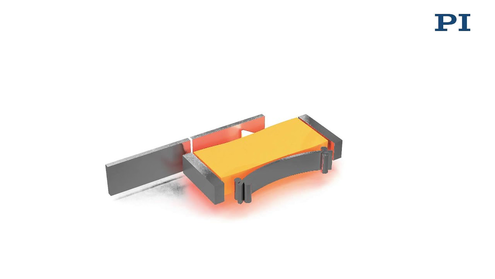

An integral part of the ultrasonic piezomotor is a piezo actuator that is pretensioned against a movably guided runner via a coupling element. The piezoceramic actuator is excited to ultrasonic vibrations with a high-frequency AC voltage between 100 and 200 kHz. Deformation of the actuator leads to a periodic diagonal motion of the coupling element, relative to the runner. The created feed is a few nanometers per cycle; the high frequencies lead to the high velocities.

PILine® motors can induce a rotary motion in one of two ways: Analog to linear motion the piezoceramic actuators act laterally on a ring-shaped runner thus creating a fast rotary motion. The holding torque generated is approximately 0.3 Nm.

A ring-shaped runner induces a rotary motion — Implementation of rotary motion: PILine® motors act on a ring-shaped runner

Small rotary stages with a diameter of 20 mm or 30 mm use a ring-shaped actuator. This type of drive achieves very high speeds of more than two revolutions per second. The holding torque is approximately 30 mNm.

Preloading the piezoceramic actuators against the runner ensures self-locking of the drive when at rest and powered down. As a result, it does not consume any power, does not heat up, and keeps the position mechanically stable. Applications with a low duty cycle that are battery operated or heat sensitive benefit from these characteristics.

The motion of the piezoceramic actuator is based on crystalline effects and is not subject to any wear. The coupling to the runner, on the other hand, is subject to friction effects. Depending on the operating mode, travel distances over 2,000 km or a MTBF of 20.000 hours are achieved.

Piezomotors from PI are vacuum compatible in principle and suitable for operation under strong magnetic fields. Special versions of the drives are available for this purpose.

The benefits of the small design height of the PILine^® drives becomes apparent with positioning systems such as the M-687 microscope cross table (25 mm height): A consistently flat design without spindle channels or flanged motors.

U-651 rotary stage and M-686K microscope cross table — PILine® products: U-651 rotation stage and M-686K microscope cross table

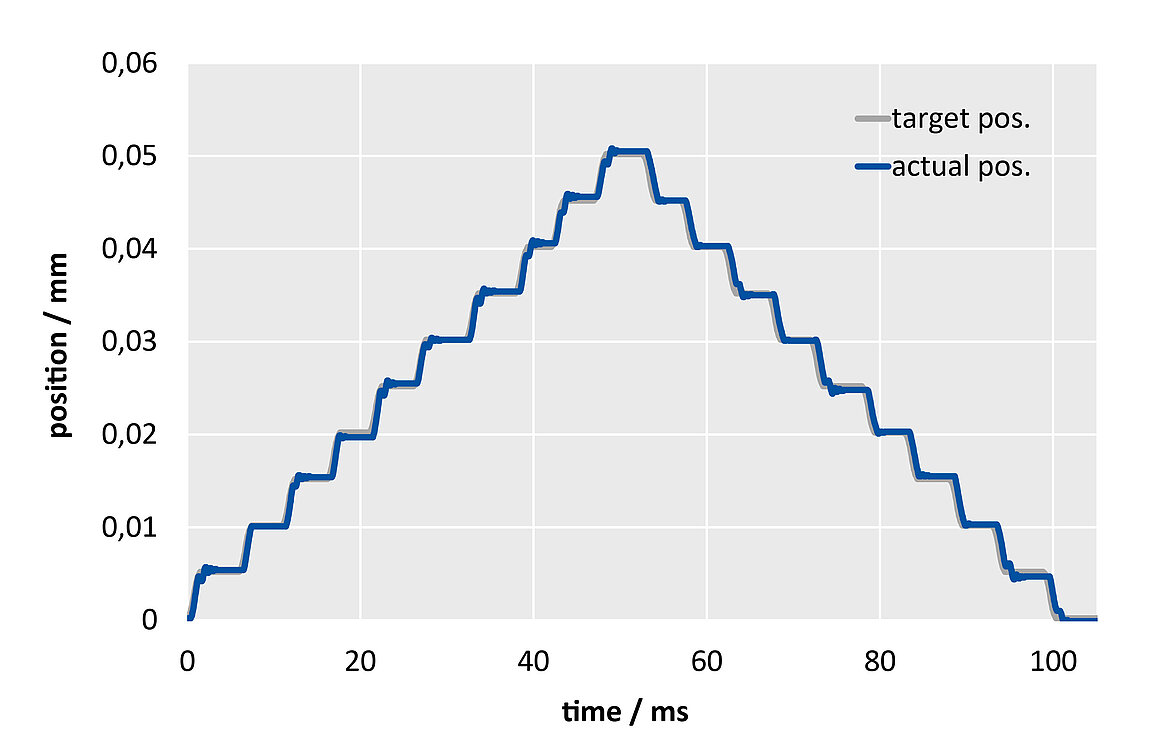

The direct-driven, robust design and fast response times of the piezo ceramics allows for very fast start / stop behavior and velocities to several 100 mm/s.

The demand for faster scanning speeds or greater throughputs characterizes only some of the applications in microscopy. Others demand high-resolution motion at low, constant speeds.

Stages with PILine® drives can be equipped with PIOne sensors and can achieve resolution in the range of single nanometers. Special control and regulation processes then provide constant speeds in the range of single encoder counts per second.
