PL088.30
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 10 mm × 10 mm × 2 mm

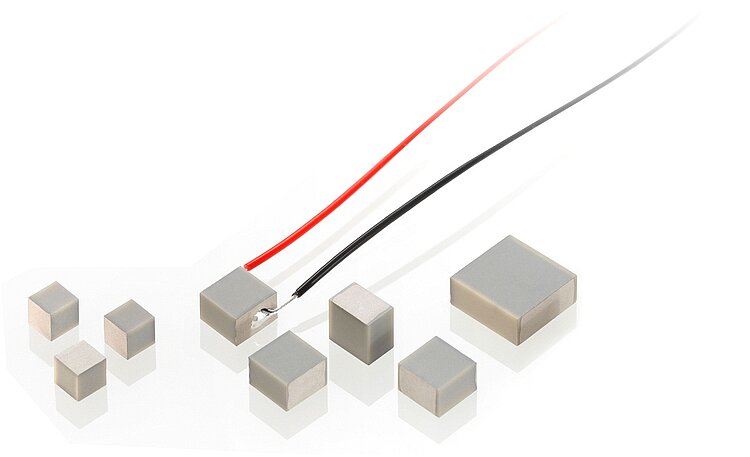

PL0xx PICMA® Chip Actuators
Miniature Multilayer Piezo Actuators
- Superior lifetime
- Ultra-compact: From 2 mm × 2 mm × 2 mm
- Ideal for dynamic operation
- Microsecond response
- Subnanometer resolution
- UHV-compatible to 10-9 hPa
On request PICMA® Chip piezo actuators can be manufactured with ceramic-insulated inner hole (left) or with precision-ground ceramic end plates (right)
PL0xx PICMA® Chip Actuators
Descrizione del Prodotto
Specifiche
Download
Quotazione / Ordine
Piezo linear actuator with PICMA® multilayer technology
Operating voltage -20 to 100 V. Ceramic insulation, polymer free. Humidity resistance. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Flexible thanks to numerous designs. Versions with rectangular, round or annular cross section.
Possible modifications
PTFE-insulated wire leads. Various geometric shapes, inner hole. Precision-ground ceramic end plates.
Fields of application
Industry and research. For laser tuning, microdispensing, life sciences.
Specifications
Specifications

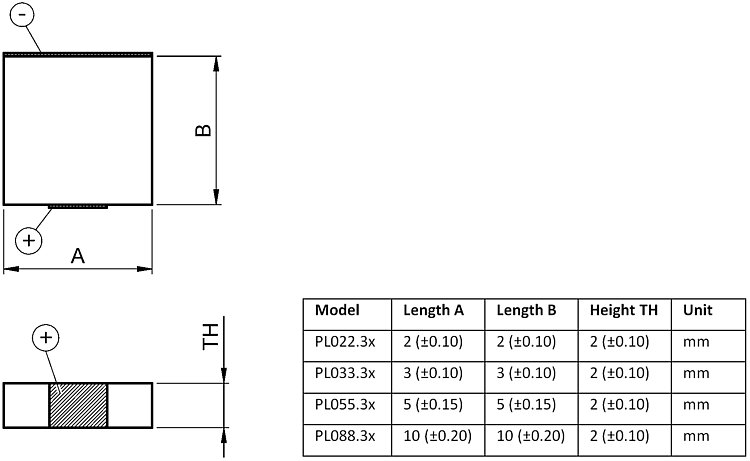

| PL022.3x | PL033.3x | PL055.3x | PL088.3x | Unit | Tolerance | |
|---|---|---|---|---|---|---|
Side length (A) | 2 ±0.10 | 3 ±0.10 | 5 ±0.15 | 10 ±0.20 | mm | |
Side length (B) | 2 ±0.10 | 3 ±0.10 | 5 ±0.15 | 10 ±0.20 | mm | |
Height (TH) | 2 ±0.10 | 2 ±0.10 | 2 ±0.10 | 2 ±0.10 | mm | |
Travel range* | 2.2 | 2.2 | 2.2 | 2.2 | µm | ±20 % |
Blocking force** | >120 | >300 | >500 | >2000 | N | |
Electrical capacitance*** | 25 | 75 | 250 | 1100 | nF | ±20 % |
Axial resonant frequency**** | >600 | >600 | >600 | >600 | kHz | |
Piezo ceramic | PIC252 | PIC252 | PIC252 | PIC252 | ||
Operating voltage range | -20 to 100 | -20 to 100 | -20 to 100 | -20 to 100 | V | |
Operating temperature range | -40 to 150 | -40 to 150 | -40 to 150 | -40 to 150 | °C | |
Recommended preload for dynamic operation | 15 | 15 | 15 | 15 | MPa | |
Maximum preload for constant force | 30 | 30 | 30 | 30 | MPa | |
Recommended electronics | E-610, E-617, E-831 | E-610, E-617, E-831 | E-610, E-617, E-831 | E-610, E-617, E-831 |
Standard connections: PL0xx.31: PTFE-insulated stranded wires, UHV compatible, 100 mm, AWG 32, Ø 0.49 mm; PL0xx.30: Solderable contacts
* At 0 to 100 V. The values refer to the unattached component and can be lower when glued on.
** At 0 to 100 V
*** Measured at 1 Vpp, 1 kHz, RT
**** Measured at 1 Vpp, no load, unclamped. The value is halved for unilateral clamping. Depending on the installation situation, the lateral resonant frequencies can be lower than the axial resonant frequencies.
Ask about custom designs!
