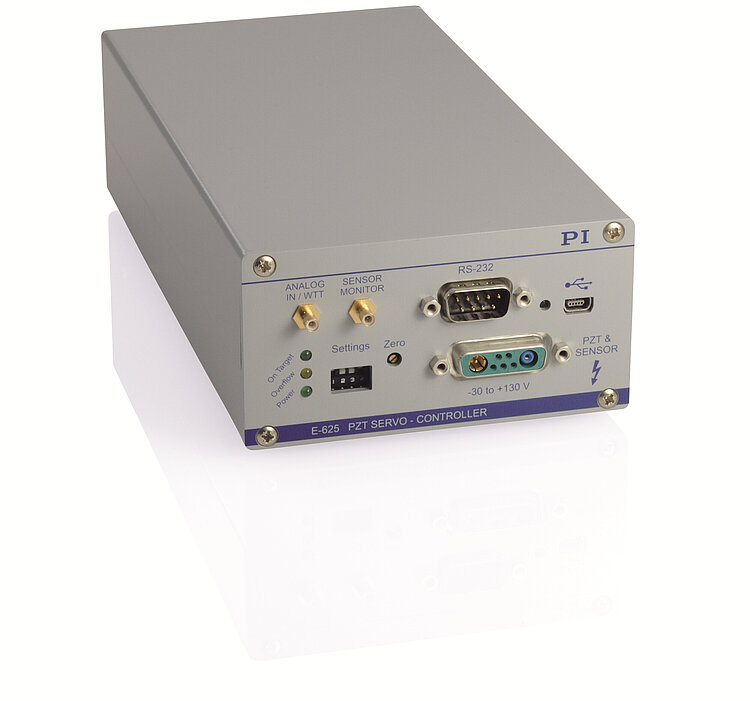

E-625 Piezo Servo Controller

Benchtop Device, 1 Channel, for Capacitive or Strain Gauge Sensors, Fast USB Interface

Integrated 24-bit USB interface
Network capability with up to 12 channels
Peak current 120 mA
Position control for SGS and capacitive sensors
Notch filter for higher bandwidth
Additional broadband analog interface

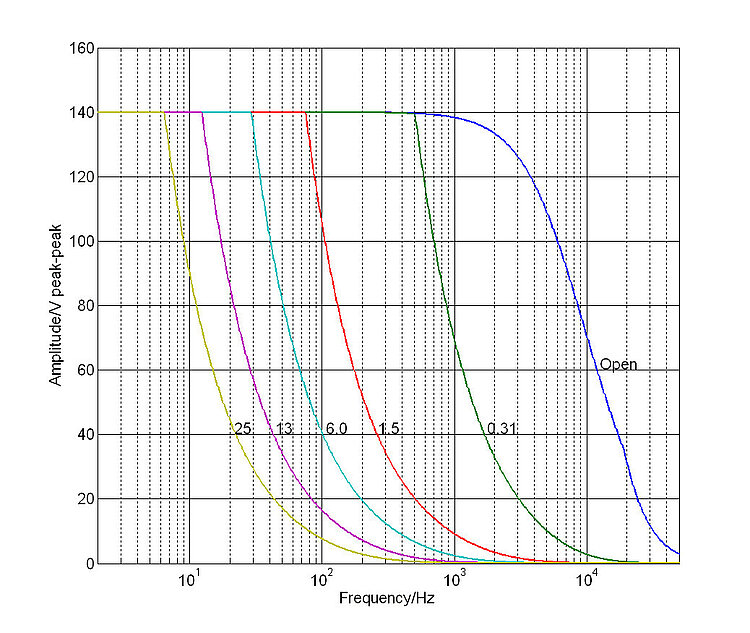

E-625: Operating limits (open loop) with various piezo loads, capacitance values in µF

Single channel piezo servo controller for capacitive sensors (E-625.CR and E-625.C0) or strain gauge sensors (E-625.SR and E-625.S0). Integrated sensor module for strain gauge sensor evaluation in the E-625.SR and .S0. Integrated servo controller module for limiting the slew rate of the output voltage, notch filter, and servo loop.

The E-625.CR and E-625.SR models with the E-816 computer interface submodule and therefore, additional functions:

Multi-axis network: Several E-625s can be controlled from one single interface. A special network cable establishes communication between the individual controllers.
Waveform memory: The user can save any function values in an internal table and output them by triggering. This makes it possible to repeat control motion profiles simply and reliably.
General Command Set (GCS): For uniform control of nano- and micropositioning systems, the universal command set from PI is used. With GCS, control is independent of the hardware so that various positioning systems can be controlled together or new systems can be used with minimum programming effort.

Scarica il datasheet Vai alle Specifiche

Datasheet

Versione / Data

2024-04-23

pdf - 482 KB

Versione / Data

2024-04-23

pdf - 484 KB

Versione / Data

2019-02-11

pdf - 766 KB

Versione / Data

2019-07-18

pdf - 790 KB

Download

	E-625.SR, E-625.S0 / E-625.CR, E-625.C0
Function	Piezo amplifier / servo controller
Channels	1

Sensor	E-625.SR, E-625.S0 / E-625.CR, E-625.C0
Controller type	P-I (analog), notch filter
Sensor type	SGS (.S) / capacitive (.C)

Amplifier	E-625.SR, E-625.S0 / E-625.CR, E-625.C0
Input voltage range	-2 to +12 V
Min. output voltage	-30 to +130 V
Peak current, < 50 ms	120 mA
Average output current	60 mA
Current limitation	Short-circuit proof
Noise, 0 to 100 kHz	0.8 mV_rms
Voltage gain	10 ±0.1
Input impedance	100 kΩ

Interfaces and operation	E-625.SR, E-625.S0 / E-625.CR, E-625.C0
Communication interfaces*	USB, RS-232 (D-sub 9 (m)), 24-bit A/D and 20-bit D/A
Piezo connection	LEMO ERA.00.250.CTL (.S) / D-sub special (.C)
Sensor connector	LEMO EPL.0S.304.HLN (.S) / D-sub special (.C)
Analog input socket	SMB
Sensor monitor socket	SMB
Controller network*	up to 12 channels
Command set*	PI General Command Set (GCS)
User software*	PIMikroMove
Software APIs*	Windows: C, C++, C#, MATLAB, NI LabVIEW, Python Linux: PIPython (incl. samples for establishing connections)
Supported functions*	Wave table, 256 data points, external trigger, up to 16 macros

Miscellaneous	E-625.SR, E-625.S0 / E-625.CR, E-625.C0
Operating temperature range	5 to 50 °C
Overheat protection	Deactivation at 75 °C
Dimensions	205 mm × 105 mm × 60 mm
Mass	1.05 kg
Operating voltage	12 to 30 V DC, stabilized (included in the scope of delivery: external power adapter)
Current consumption	2 A

* E-625.S0 and E-625.C0 without digital interface

Scarica il datasheet Vai al download

Datasheet

Versione / Data

2024-04-23

pdf - 482 KB

Versione / Data

2024-04-23

pdf - 484 KB

Versione / Data

2019-02-11

pdf - 766 KB

Versione / Data

2019-07-18

pdf - 790 KB

Download

Documentation

Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx

Versione / Data

1.2.0 03/2024

pdf - 754 KB

Versione / Data

1.2.0 03/2024

pdf - 791 KB

Download

Documentation

Guide to Grounding and Shielding

Versione / Data

2018-11-22

pdf - 120 KB

Versione / Data

2018-11-22

pdf - 125 KB

Documentation

E-801 Sensor Submodule

Versione / Data

2010-11-22

pdf - 1 MB

inglese

Documentation

E-802.50, .51, .52, .55 (old versions) Servo-Controller Submodule

Versione / Data

2004-09-16

pdf - 706 KB

inglese

Documentation

E-802.56 Servo-Controller Submodule

Versione / Data

2006-10-26

pdf - 406 KB

inglese

Documentation

E-802.55, Servo-Controller Submodule, revision ADC or higher

Versione / Data

2013-11-08

pdf - 401 KB

Versione / Data

2013-11-08

pdf - 413 KB

Documentation

E-625.CR, E-625.C0 Piezo Servo Controller, for Capacitive Sensors

Versione / Data

2.1.1 2024-01-04

pdf - 2 MB

Versione / Data

2.1.1 2024-01-04

pdf - 2 MB

Documentation

E-625.SR, E-625.S0 Piezo Servo Controller, for Strain Gauge Sensors

Versione / Data

2.1.1 2024-01-04

pdf - 2 MB

Versione / Data

2.1.1 2024-01-04

pdf - 2 MB

Documentation

E-816 Computer Interface and Command Interpreter Submodule

Versione / Data

1.3.1 2021-09-22

pdf - 591 KB

inglese

Documentation

E-816 GCS DLL & COM Server

Versione / Data

1.1.0 2007-06-22

pdf - 358 KB

inglese

Software Files

Versione / Data

2.9.0.5, 2024-10

zip - 801 MB

Software Files

Versione / Data

2.9.0.5, 2024-10

pdf - 322 KB

inglese

General Software Documentation

Implementing a C-887 PI Controller in TwinCAT 3.1

Versione / Data

2024-06-05

pdf - 1 MB

General Software Documentation

PI GCS2 Driver Library for NI LabVIEW

Versione / Data

7.0.1 2021-03-03

pdf - 3 MB

inglese

Download

General Software Documentation

Updating PI Software with PIUpdateFinder

Versione / Data

2024-06-04

pdf - 416 KB

Versione / Data

2024-06-04

pdf - 422 KB

General Software Documentation

GCS Array Data Format

Versione / Data

1.2.1

pdf - 153 KB

inglese

General Software Documentation

PIMikroMove

Versione / Data

2024-10-23

pdf - 6 MB

inglese

Vai alla quotazione / ordine

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

E-625.CR

Piezo amplifier / servo controller, 1 channel, -30 to 130 V, capacitive sensor, USB, RS-232

Add to quote list Remove from quote list

E-625.SR

Piezo amplifier / servo controller, 1 channel, -30 to 130 V, strain gauge sensor, USB, RS-232

Add to quote list Remove from quote list

E-625.C0

PIFOC Piezo amplifier / servo controller, 1 channel, -30 to 130 V, capacitive sensor

Add to quote list Remove from quote list

E-625.S0

PIFOC Piezo amplifier / servo controller, 1 channel, -30 to 130 V, strain gauge sensor

Add to quote list Remove from quote list

Ask for custom design Go to quote list

Ricevere rapidamente una risposta alla tua risposta via email o telefono da un Sales Engineer dalla sede PI più vicina a te.

0039 02 665 011 01 info@pionline.it

Contattaci!

Compatible Products Compatible Accessories Related Controllers

E-625 Piezo Servo Controller

Benchtop Device, 1 Channel, for Capacitive or Strain Gauge Sensors, Fast USB Interface

Piezo servo controller with position control

Functions and interfaces

Specifications
