E-663 3-Channel Piezo Amplifier
For Open-Loop Piezo Systems and Actuators without Position Sensors
- 3 independent channels
- Peak power 3 × 14 W
- 3 LED displays
- Output voltage range -20 to 120 V
E-663 3-Channel Piezo Amplifier
Descrizione del Prodotto
Specifiche
Download
Quotazione / Ordine

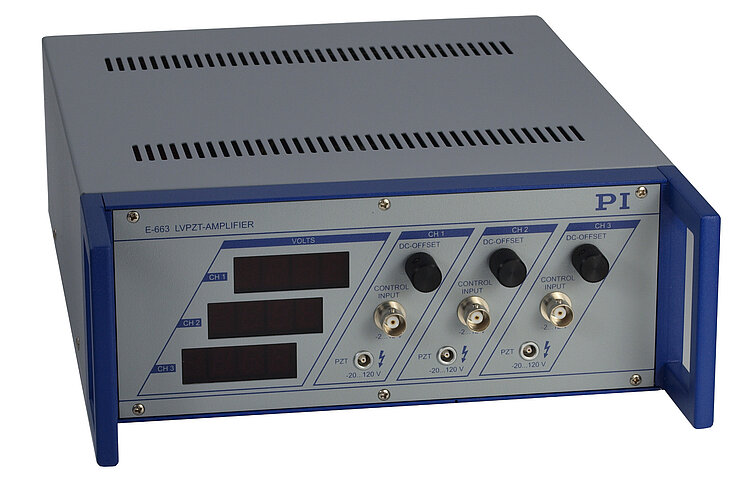

3-channel amplifier for low-volt piezo actuators
The E-663.00 benchtop amplifier has three low-noise amplifier channels for low-volt piezo actuators that input and output peak currents of 140 mA in a voltage range of -20 to +120 V. Three 3½-digit LED displays are available for showing the output voltages.
Specifications
Specifications
Amplifier | E-663.00 |
---|---|
Input voltage range | -2 to +12 V |
Output voltage | -20 to +120 V |
Peak power / channel | 14 W |
Average output power / channel | 6 W (max.) |
Peak current / channel <5 ms | 140 mA |
Average output current / channel, > 5 ms | 60 mA |
Current limitation | Short-circuit proof |
Noise, 0 to 100 kHz | <1 mVrms |
Voltage gain | 10 ±0.1 |
Input impedance | 100 kΩ |
Ask about custom designs!
Downloads
Datasheet
Documentation
Documentation
User Manual PZ69
E-663 Piezo Amplifier, 3 Channels
Versione / Data
2.2.0 2019-08-29
pdf - 286 KB
inglese
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
E-663.00
Piezo amplifier, 3 channels, -20 to 120 V, benchtop device
