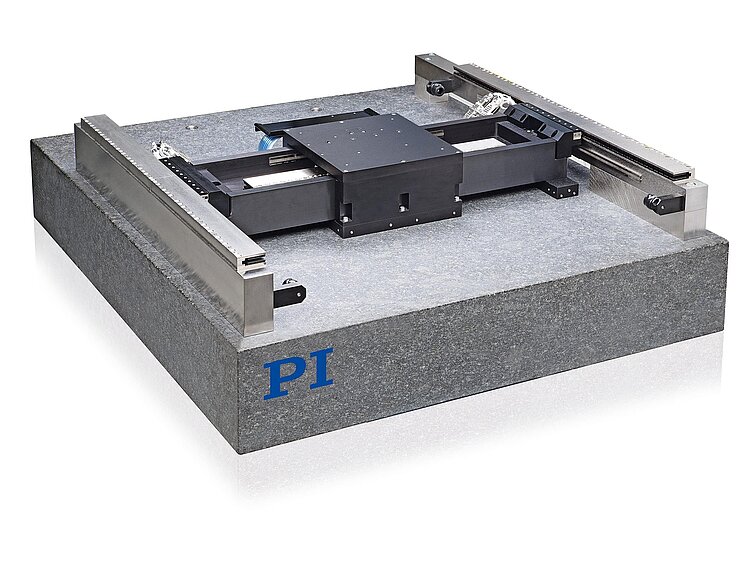

A-322 PIglide HS Planar Scanner with Air Bearing
XY Positioning System with 1 nm Resolution
- Ideal for scanning applications or high-precision positioning
- Cleanroom compatible
- Travel ranges to 500 mm × 1000 mm
- Load capacity to 245 N
- Resolution to 1 nm, Velocity to 2 m/s
- Three performance classes: Base, Plus, and Ultra
A-322 Base
A-322 PIglide HS Planar Scanner with Air Bearing
Descrizione del Prodotto
Specifiche
Download
Quotazione / Ordine
PIglide reference-class XY positioning system
The PIglide HS planar scanner has magnetic linear motors, vacuum preload, and an absolute encoder: Contact- and friction-free motion for the highest accuracy and reliability.
The positioning system was designed to maximize the throughput and ensure the highest precision. Flexible coupling of the bridge axis to the gantry axis allows lateral decoupling without sacrificing the stiffness of the system.
The A-322 is coupled with industry-leading controllers and drive modules from ACS that offer superior servo performance, advanced control algorithms to improve dynamic performance and error compensation, and a wide suite of software development tools.
The A-322 series is a starting point for further adaptations. Critical core components such as linear motors, measuring systems, and air bearing assemblies have already been developed, tested, and have proven their capabilities. Depending on the application and requirements of the customer, a variant of the A-322 series forms the ideal starting point for a tailor-made, ultraprecise solution.
3 performance and price classes
- Base: XY gantry design with 3 standard linear motors.
- Plus: XY gantry design with 3 liquid-cooled, high-performance linear motors. For applications with a high duty cycle and high accelerations.
- Ultra: XY gantry design with 4 liquid-cooled, high-performance linear motors. Both the X and the Y axis have 2 linear motors and 2 linear encoders each. This design improves the positioning accuracy, repeatability, and error compensation, in particular for loads with large dimensions.
Absolute encoder
Absolute encoders supply explicit position information that enables immediate determination of the position. This means that referencing is not required during switch-on, which increases efficiency and safety during operation.
PIMag® magnetic direct drive
3-phase magnetic direct drives do not use mechanical components in the drivetrain, they transmit the drive force to the motion platform directly and without friction. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.
Accessories and options
- PIglide Filter and Air Preparation Kits
- Additional axes
- Machine bases
- Base plates made of granite and systems for reducing vibration
- Suitable mounts for additional positioners such as tip/tilt platforms or 6-axis positioners with piezo drives.
Long lifetime, cleanroom compatible drag chains
The A-322 has high-quality, long-lasting ribbon cables and pneumatic hoses. Extensive research and development has resulted in an optimized cable management system that enables millions of maintenance-free cycles. Teflon coating ensures low particle formation.
Application fields
PIglide positioning systems are ideally suited for many high-precision applications, such as metrology, photonics, and precision scanning as well as in semiconductor or flat panel display manufacturing.
Thanks to the friction-free motion, no particles are formed, which makes PIglide stages ideal for cleanroom applications.
Specifications
Specifications
Model | Unit | A-322 Base | A-322 Plus | A-322 Ultra |
|---|---|---|---|---|
Precision/dynamics | Standard/standard | Standard/high | High/high | |
Motion | ||||
Travel range, bridge axis | mm | 350; 500 | 350; 500 | 350; 500 |
Travel range, gantry axis | mm | 350; 500 | 350; 500; 750 | 350; 500; 750; 1000 |
Size of the motion platform | 250 × 268 | 250 × 268 | 250 × 318 | |
Guide | Air bearing, with vacuum preload | Air bearing, with vacuum preload | Air bearing, with vacuum preload | |
Integrated sensor | Absolute linear encoder, BiSS-C, steel measuring gauge | Absolute linear encoder, BiSS-C, steel measuring gauge | Absolute linear encoder, BiSS-C, steel measuring gauge | |
Sensor resolution | nm | 1 | 1 | 1 |
Load capacity | kg | 15 | 20 | 30 |
Bidirectional repeatability (2) | µm | ±0.15 | ±0.15 | ±0.05 |
Positioning accuracy, calibrated (2) | µm | ±0.35 | ±0.35 | ±0.2 |
Straightness (2) | µm | 1 | 1 | 0.5 |
Flatness | µm | 2 | 2 | 2 |
Pitch | µrad | 10 | 10 | 10 |
Yaw (2) | µrad | 5 | 5 | 2 |
XY orthogonality | µrad | 5 | 5 | 2 |
Max. velocity, unloaded (3) | m/s | 0.5 | 1 | 1 |
Max. acceleration, unloaded (3) | m/s² | 10 | 20 | 20/15 (bridge/gantry axis) |
Position stability | nm | ±30 | ±30 | ±30 |
Moved mass, bridge axis | kg | 14 | 14 | 20 |
Moved mass, gantry axis | kg | Depending on the travel range of the bridge axis: 350 mm: 40 kg 500 mm: 44 kg | Depending on the travel range of the bridge axis: 350 mm: 53 kg 500 mm: 56 kg | Depending on the travel range of the bridge axis: 350 mm: 70 kg 500 mm: 75 kg |
(1) Assumes an air bearing operating pressure of 550 kPa. The payload center of gravity may not be more than 50 mm away from the surface of the motion platform.
(2) Requires controller-based error compensation. Positioner must be ordered with a PI / ACS controller. Values assume short duration and do not consider the long-term effects of thermal drift on the stage.
(3) Depends on the motor selected, controller performance, duty cycle, load, and other application-specific parameters. Acceleration, duty cycle, and motion profile should be agreed with a PI application engineer.
Overall weight depends on the customer-specific granite base.
Values serve as examples for a travel range of 500 mm × 500 mm. Contact PI for the exact specifications for other travel ranges.
Drive properties (per motor) | Unit | A-322 Base Bridge/gantry axis | A-322 Plus Bridge/gantry axis | A-322 Ultra Bridge/gantry axis |
|---|---|---|---|---|
Number of motors | 1× bridge, 2× gantry axis | 1× bridge, 2× gantry axis | 2× bridge, 2× gantry axis | |
Nominal voltage, DC | V | 70/70 | 70/70 | 70/70 |
Peak voltage, DC | V | 300/300 | 300/300 | 300/300 |
Nominal force | N | 87/87 | 140/140 | 87/140 |
Peak force | N | 300/300 | 480/480 | 300/480 |
Force constant, RMS | N/A | 19.9/19.9 | 27.5/27.5 | 19.9/27.5 |
Nominal current, RMS | A | 4.4/4.4 | 5.1/5.1 | 4.4/5.1 |
Peak current, RMS | A | 15/15 | 17.5/17.5 | 15/17.5 |
Back EMF, phase-phase | V·s/m | 16/16 | 22.5/22.5 | 16/22.5 |
Resistance, phase-phase | Ω | 3.6/3.6 | 2.6/2.6 | 3.6/2.6 |
Inductance, phase-phase | mH | 1.2/1.2 | 2.0/2.0 | 1.2/2.0 |
Cooling system | – | Water, 20°C, 2 to 3 l/min | Water, 20°C, 2 to 3 l/min |
Miscellaneous | A-322 (all models) |
|---|---|
Operating pressure | 550 ±35 kPa (80 ±5 psi) |
Air consumption | With external vacuum supply: 56 l/min (2 SCFM) With internally generated vacuum: 112 l/min (4 SCFM) |
Vacuum | 74.66 kPa (560 mmHg), 14 l/min (0.5 SCFM) |
Air quality | Clean (filtered to 1.0 μm or better) - ISO 8573‑1 Class 1 Oil free - ISO 8573‑1 Class 1 Dry (-15 °C dew point) - ISO 8573‑1 Class 3 |
Materials | Granite base Hardcoat aluminum Nickel-plated steel side rails Mounting hardware made of stainless steel |
Recommended controllers | A-81x, A-82x |
Downloads
Datasheet
White Paper
White Paper
Air Bearings: When to Use and When to Avoid in Your Motion Application
All Positioning Stages are not Created Equal. Author: Matt Reck, PI
Versione / Data
WP4003 2015-09
pdf - 3 MB
inglese
