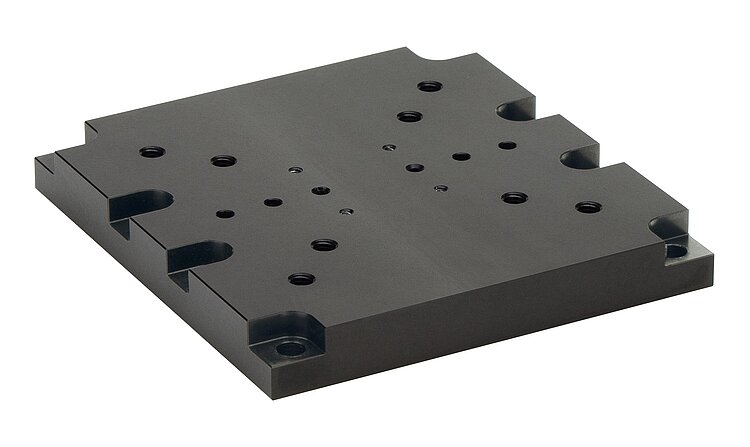

V-855.TTx Motion Platform for V-855 Positioners

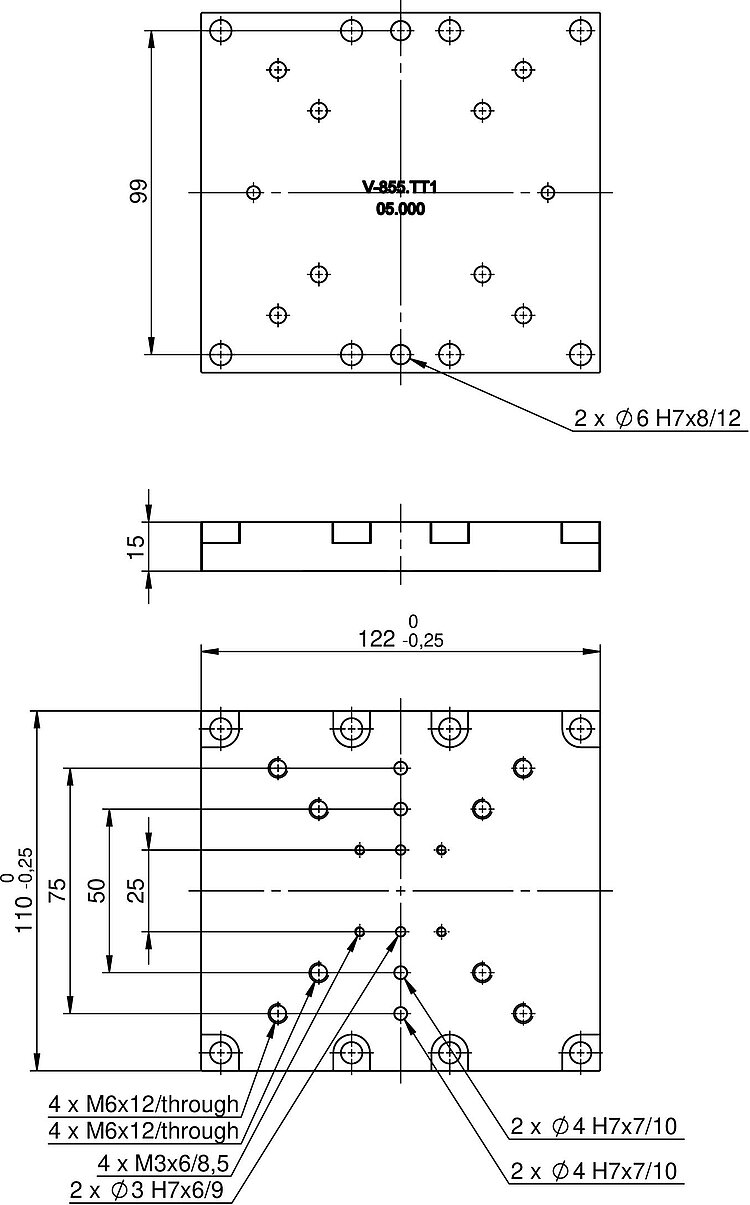

Triple M6 Hole Pattern

  • Hole pattern, 25 mm × 25 mm
  • Hole pattern, 50 mm × 50 mm
  • Hole pattern, 75 mm × 75 mm
  • M3 and M6 threaded holes
V-855.TTx Motion Platform for V-855 Positioners
Descrizione del Prodotto Specifiche Download Quotazione / Ordine

Product overview

The motion platform is available as optional accessory for the V-855 high-speed linear stages.

It offers versatile assembly options with a triple M6 hole pattern.

Specifications

Datasheet

Datasheet V-855.TTx

Versione / Data
2021-07-28
pdf - 347 KB
Versione / Data
2021-07-28
pdf - 352 KB

Downloads

Datasheet

Datasheet

Datasheet V-855.TTx

Versione / Data
2021-07-28
pdf - 347 KB
Versione / Data
2021-07-28
pdf - 352 KB

3D Models

3D Models

3-D model V-855.TT1

Versione / Data
2021-07-28
zip - 319 KB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Chiedi ad un Ingegnere!

Ricevere rapidamente una risposta alla tua risposta via email o telefono da un Sales Engineer dalla sede PI più vicina a te.

Compatible Products
