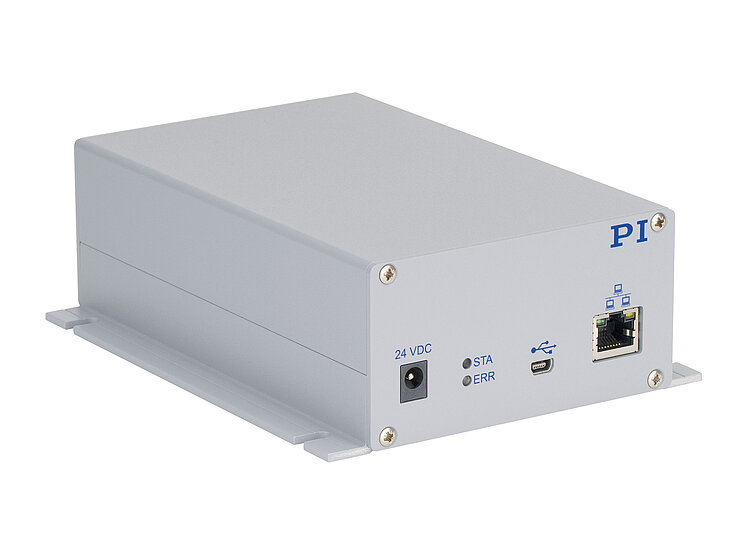

E-135.601M
PIRest drive electronics for up to 6 actuators, HD D-sub 15 sockets, TCP/IP and USB interface
E-135 PIRest Drive Electronics
Control of up to 6 PIRest Active Shims
- Easy readjustment of machines at inaccessible locations
- Control of up to 6 PIRest active shims
- Independent adaptation of operating parameters to the ambient conditions
- ID chip detection for automatic configuration of operating parameters
- Interfaces: TCP/IP, USB

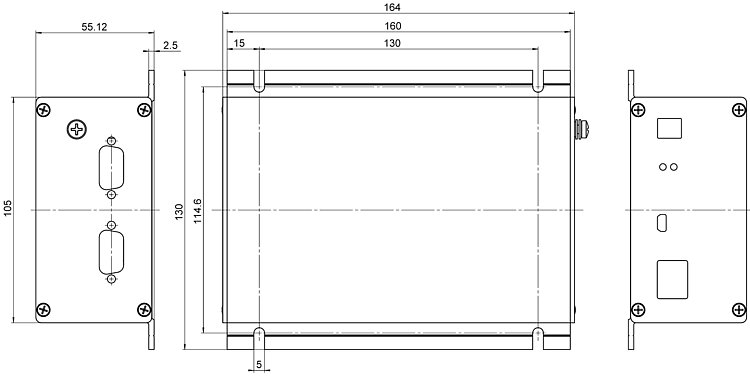

E-135.601M: dimensions in mm
E-135 PIRest Drive Electronics
Descrizione del Prodotto
Specifiche
Download
Quotazione / Ordine
Long-term stable positioning with PIRest active shims
The PIRest drive electronics are only necessary during the adjustment process of the PIRest compensating actuators. Once displaced, actuators with PIRest technology hold their position stable without permanent control voltage. Nanometer precision, maintenance-friendly and inexpensive adjustments are possible even at inaccessible locations. Up to 6 actuators can be connected and adjusted one after each other.
High user-friendliness due to automatic configuration
Important operating parameters are stored on the mechanic's ID chip and are read out automatically when the electronics are switched on. The operating parameters are adapted to the ambient conditions independently during the adjusting procedure.
Easy integration and handling
All PIRest active shims are equipped with a Sub-D connector. The cable for connecting to the drive electronics is available in several variants und must therefore be ordered separately. A PC controls the drive electronics via an Ethernet or USB interface. Software support is included in the scope of delivery.
Application fields
- Set-and-forget applications
- Adaptive mechanics
- Drift compensation
- Adjustment of optical components
- Precision mechanics
- Static precision positioning
- Metrology and interferometry
Downloads
Datasheet
Documentation
Documentation
Technical Note A000T0074
Guide to Grounding and Shielding
Versione / Data
2018-11-22
pdf - 120 KB
Versione / Data
2018-11-22
pdf - 125 KB
Documentation
User Manual PZ290
E-135.601M PIRest Drive Electronics
Versione / Data
2020-07-07
pdf - 2 MB
inglese
Software Files
Software Files
PI Software Suite C-990.CD1
Versione / Data
2.9.0.5, 2024-10
zip - 801 MB
Software Files
C-990.CD1 Releasenews
Versione / Data
2.9.0.5, 2024-10
pdf - 322 KB
inglese
General Software Documentation
General Software Documentation
User Manual A000T0075
Implementing a C-887 PI Controller in TwinCAT 3.1
Versione / Data
2024-06-05
pdf - 1 MB
General Software Documentation
Software Manual SM157
PIPython - Programming PI Controllers with Python
Versione / Data
2024-07-09
pdf - 2 MB
Versione / Data
2024-07-09
pdf - 2 MB
General Software Documentation
Software Manual SM155
PI MATLAB Driver GCS 2.0
Versione / Data
1.2.0 2019-03-22
pdf - 1 MB
Versione / Data
1.2.0 2019-03-22
pdf - 1 MB
General Software Documentation
User Manual A000T0028
Updating PI Software with PIUpdateFinder
Versione / Data
2024-06-04
pdf - 416 KB
Versione / Data
2024-06-04
pdf - 422 KB
General Software Documentation
Software Manual SM146
GCS Array Data Format
Versione / Data
1.2.1
pdf - 153 KB
inglese
General Software Documentation
Software Manual SM151
PI GCS DLL
Versione / Data
2024-06-07
pdf - 3 MB
inglese
General Software Documentation
Software Manual SM148
PIMikroMove
Versione / Data
2024-10-23
pdf - 6 MB
inglese
General Software Documentation
Software Manual SM158
PI GCS2 Driver Library for NI LabVIEW
Versione / Data
7.0.1 2021-03-03
pdf - 3 MB
inglese
General Software Documentation
User Manual SM164E
Updating controller firmware with PIFirmwareManager
Versione / Data
12.12.2023 1.0.0
pdf - 819 KB
inglese
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
Accessories (please order separately)
E-815.AK100
PIRest adapter cable, 1 channel, Sub-D 9 (f) to HD Sub-D 15 (m), 0.5 m
E-815.AK200
PIRest adapter cable, 2 channels, 2 × HD Sub-D 15 (f) to HD Sub-D 15 (m), 0.5 m
E-815.AK300
PIRest adapter cable, 3 channels, 3 × HD Sub-D 15 (f) to HD Sub-D 15 (m), 0.5 m
E-815.AK600
PIRest adapter cable set, 6 channels, consisting of 2 × E-815.AK300 (channels 1 to 3 and channels 4 to 6)
