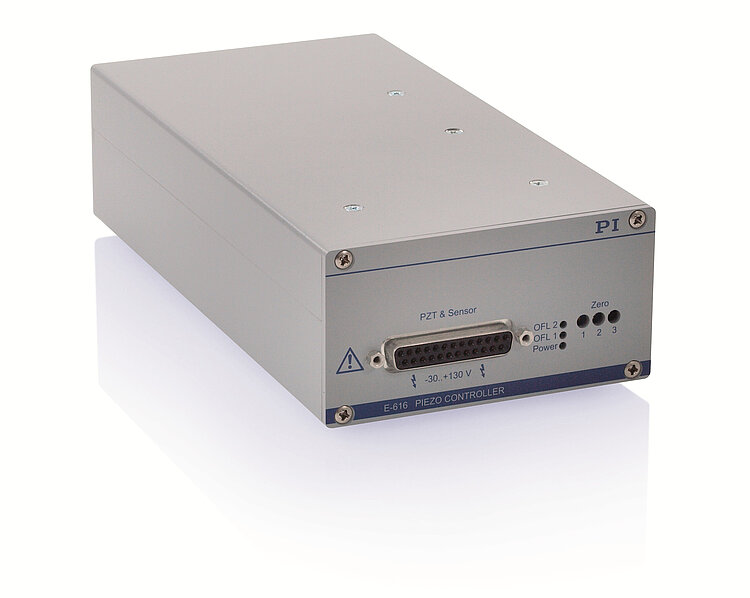

E-616 Controller for Multi-Axis Piezo Tip/Tilt Mirrors and Platforms
Flexible Multi-Channel Electronics with Coordinate Transformation
- Three integrated amplifiers provide up to 10 W peak power
- Closed-loop and open-loop versions
- Internal coordinate transformation simplifies control of parallel-kinematic designs (tripod and differential drives)
- Compact, inexpensive OEM design or benchtop device
Specifications
Specifications

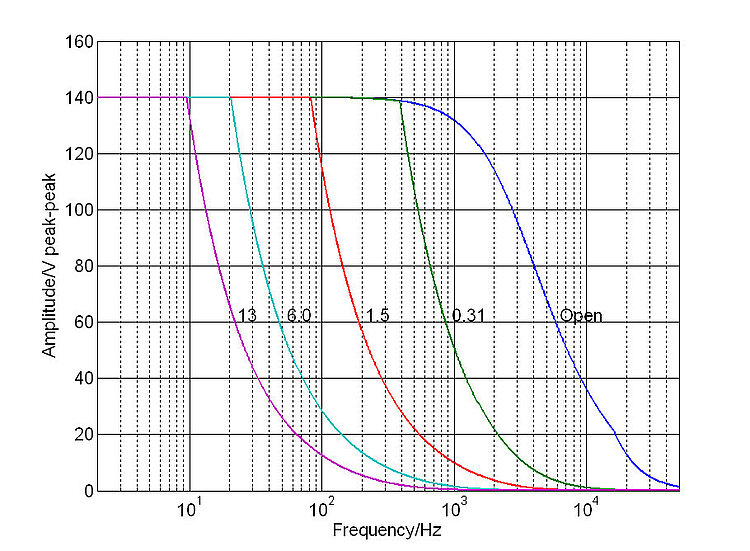

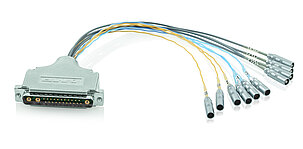

E-616.S0 / E-616.S0G | E-616.SS0 / E-616.SS0G | |
---|---|---|
Function | Controller for parallel-kinematic piezo tip/tilt mirror systems with strain gauge sensors, tripod drive E-616.S0: OEM board E-616.S0G: Benchtop device | Controller for parallel-kinematic piezo tip/tilt mirrors with strain gauge sensors, differential drive E-616.SS0: OEM board E-616.SS0G: Benchtop device |
Tip/tilt axes | 2 | 2 |
Amplifier | E-616.S0 / E-616.S0G | E-616.SS0 / E-616.SS0G |
---|---|---|
Input voltage range | -2 to 12 V | -2 to 12 V |
Output voltage | E-616.S0: -20 to 120 V E-616.S0G: -30 to 130 V | E-616.SS0: -20 to 120 V E-616.SS0G: -30 to 130 V Additionally: Fixed voltage 100 V |
Amplifier channels | 3 | 3 |
Peak power / channel (output power) | 10 W | 10 W |
Average output power / channel | 5 W | 5 W |
Peak current / channel | 100 mA | 100 mA |
Average output current / channel | 50 mA | 50 mA |
Current limitation | Short-circuit proof | Short-circuit proof |
Voltage gain | 10 | 10 |
Amplifier bandwidth, small signal | 3 kHz | 3 kHz |
Ripple, noise, 0 to 100 kHz | <20 mVpp, <2 mVpp | <20 mVpp, <2 mVpp |
Amplifier resolution | <1 mV | <1 mV |
Interfaces and operation | E-616.S0 / E-616.S0G | E-616.SS0 / E-616.SS0G |
---|---|---|
Piezo / sensor connector | Sub-D 25 (f) | Sub-D 25 (f) |
Analog input / control signal input | E-616.S0: 32-pin connector E-616.S0G: SMB connector | E-616.SS0: 32-pin connector E-616.SS0G: SMB connector |
Sensor monitor signal | 0 to 10 V for nominal displacement | 0 to 10 V for nominal displacement |
Sensor monitor output | E-616.S0: 32-pin connector E-616.S0G: Sub-D 15-pin connector | E-616.SS0: 32-pin connector E-616.SS0G: Sub-D 15-pin connector |
Display and indicators | Power LED and sensor OFL display | Power LED and sensor OFL display |
Miscellaneous | E-616.S0 / E-616.S0G | E-616.SS0 / E-616.SS0G |
---|---|---|
Operating temperature range | 5 to 50 °C | 5 to 50 °C |
Overheat protection | Max. 75°C, deactivation of the voltage output | Max. 75°C, deactivation of the voltage output |
Dimensions | E-616.S0: 186 mm × 128.4 mm × 10 HP E-616.S0G: 205 mm × 105 mm × 54.1 mm | E-616.SS0: 186 mm × 128.4 mm × 10 HP E-616.SS0G: 205 mm × 105 mm × 54.1 mm |
Mass | E-616.S0: 0.95 kg E-616.S0G: 1.2 kg | E-616.SS0: 0.95 kg E-616.SS0G: 1.2 kg |
Operating voltage | E-616.S0: 12 to 30 V DC E-616.S0G: 23 to 26 V DC | E-616.SS0: 12 to 30 V DC E-616.SS0G: 23 to 26 V DC |
Max. power consumption | 30 W | 30 W |
