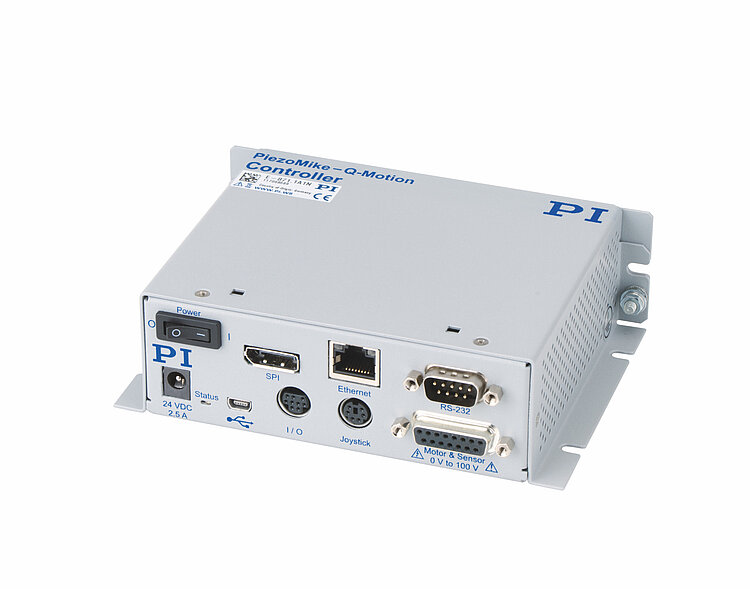

E-871.1A1N PiezoMike - Q-Motion® Controller
For Closed-Loop PiezoMikes, 1 Axis, TCP/IP, USB, RS-232 Interface
- Broadband encoder input
- Macro programmable for stand-alone functionality
- Data recorder
- ID chip support for quick startup
- Interfaces: TCP/IP, USB, RS-232, I/O
- Joystick for manual operation
Digital servo controller for piezo inertia drives
Integrated power amplifier and voltage generator for piezo inertia drives. Point-to-point motion, actuator mode for nanometer precision positioning at the target position. 1 axis. For control of closed-loop PiezoMikes. Also suitable for Q-Motion® positioning systems (in applications which require silent travel (20 kHz)).
Interfaces
TCP/IP, USB and RS-232 for commanding. Differential signal transmission for digital (A/B) or analog (sin/cos) encoder signals, BiSS interface for absolute encoders. TTL inputs for limit and reference point switches. I/O lines (analog/digital) for automation. Interface for analog joystick.
Extensive functions, software support
Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameter changing during operation. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.
Scope of delivery
Scope of delivery includes wide-range-input power supply with power cord, USB, RS-232 cable, and network cable
Specifications
This content is only available on tablets or desktop devices.Specifications
E-871.1A1N | |
|---|---|
Function | Controller for closed-loop PiezoMikes, also suitable for Q-Motion® positioners* Benchtop device with option for cabinet mounting |
Drive type | Piezo inertia drive |
Axes | 1 |
Supported functions | Point-to-point motion. Startup macro. Data recorder for recording operating data such as motor voltage, position or position error. Internal safety circuitry: Watchdog timer. ID chip detection. |
Motion and servo controller | E-871.1A1N |
|---|---|
Controller type | PID controller, parameter changing during operation |
Encoder input | Analog encoder inputs sine-cosine, interpolation selectable to 20000; Interpolation electronics preset for differential transmission, 1 Vppand 2.5 V encoder offset signal; BiSS interface for absolute encoders |
Stall detection | Automatic motor stop |
Input limit switch | 2 × TTL (pull-up / pull-down, programmable) |
Input reference point switch | 1 × TTL for integrated reference in the encoder |
Interfaces and operation | E-871.1A1N |
|---|---|
Communication interfaces | TCP/IP: RJ45/Ethernet; USB: Mini-USB type B; RS-232: D-sub 9 (m) |
Motor / sensor connector | D-sub 15 (f) |
I/O lines | 4 analog / digital inputs, 4 digital outputs |
Command set | PI General Command Set (GCS) |
User software | PIMikroMove |
Application programming interfaces | API for C / C++ / C# / VB.NET / MATLAB / Python, drivers for NI LabVIEW |
Manual control | Analog joystick |
