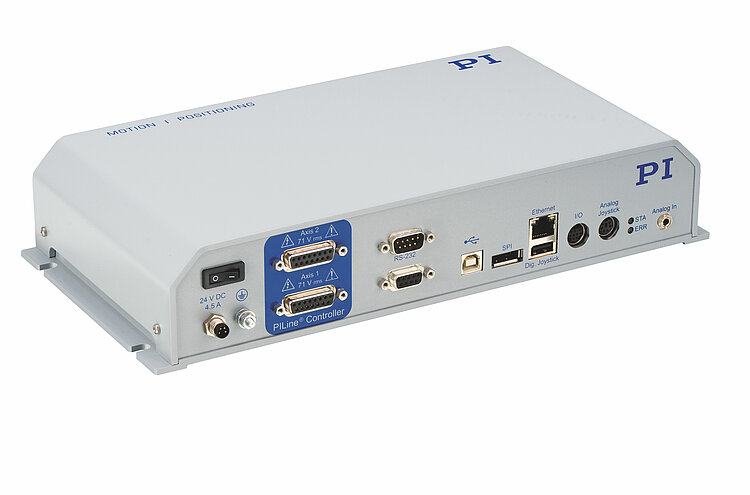

C-867.2U2 PILine® Motion Controller
For Two-Axis Positioning Stages with PILine® Ultrasonic Piezo Motors
- Integrated power amplifier with dynamic frequency control
- Multifunctional encoder input: A/B, sin/cos, BiSS
- Macro programmable for stand-alone functionality
- Integrated interfaces: USB, RS-232, TCP/IP, SPI, I/O, joystick
- Daisy chain networking
- Trajectory support for 1- or 2-D motion patterns
Servo controller and power amplifier
Two-axis benchtop device with special PID controller for PILine® ultrasonic piezo motors. Network capable with up to 16 units on a single interface. Power amplifier for PILine® ultrasonic piezo motors and stages with performance class 1 and 2 piezo motors. Dynamic frequency control for optimum control.
Motion profiles
Point-to-point, trapezoidal velocity profile. User-definable trajectories (e.g., circles, sine curves) from externally fed points.
Interfaces and communication, encoder input
USB, RS-232, TCP/IP, SPI interface for commanding. I/O lines for automation. Connectors for analog and digital joystick. Differentially transmitted A/B signals (TTL) or sin/cos signals. BiSS interface for absolute encoders. Inputs for TTL signals from limit and reference point switches.
Extensive functions, software support
Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameter changing during operation. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.
Fields of application
- Micromanipulation
- Automation
- Biotechnology
- Sample manipulation
- Sample positioning
- Optical measuring technology

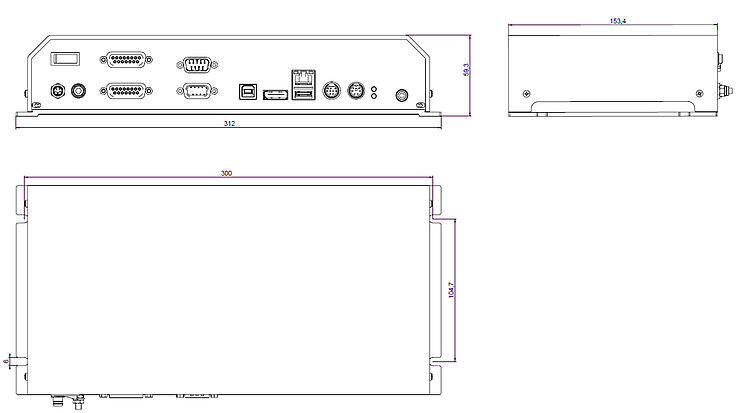

Specifications
Specifications
Motion and control | C-867.2U2 |
---|---|
Controller type | Programmable PID control, parameter changing during operation |
Motion profiles | Point-to-point trapeze, user-definable trajectories |
Encoder input | Sin/cos (differential), A/B (TTL, differential), BiSS interface |
Stall detection | Servo off, triggered by programmable position error or power level |
Limit switches | 2 programmable TTL lines per axis |
Reference point switch | 1 programmable TTL line per axis |
Interfaces and operation | C-867.2U2 |
---|---|
Communication interfaces | USB, RS-232, TCP/IP, SPI |
Motor connection | Sub-D 15 (f) |
Controller network | Up to 16 units on a single interface |
I/O lines | 4 analog / digital inputs 4 digital outputs to mini DIN, 9-pin Digital: TTL Analog: 0 to 5 V |
Command set | PI General Command Set (GCS) |
User software | PIMikroMove |
Application programming interfaces | API for C / C++ / C# / VB.NET / MATLAB / Python, drivers for NI LabVIEW |
Supported functions | Startup macro. Data recorder for recording operating data such as motor voltage, velocity, position or position error. ID chip detection. |

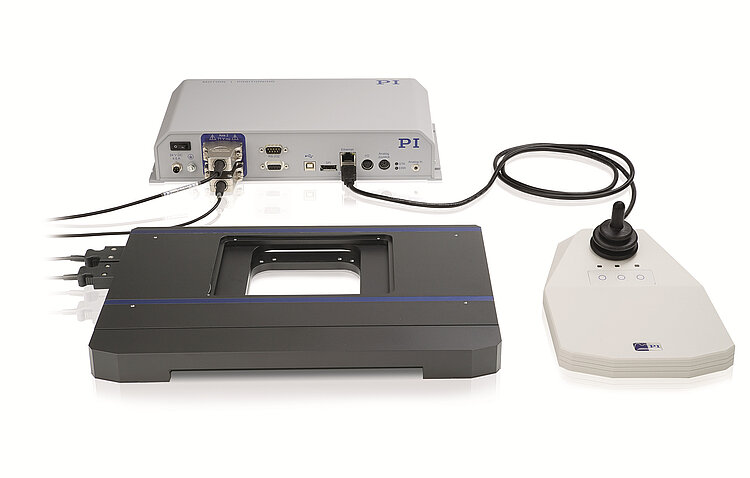

Manual control | Pushbutton box, analog or digital joystick (for 2 axes) |
