E-515 Display Module for Piezo Controllers

Voltage and Position Evaluation, E-500 Piezo Controller System

3½-digit display for voltage and position
1- and 3-channel versions
Module for E-500 piezo controller rack

quote / order

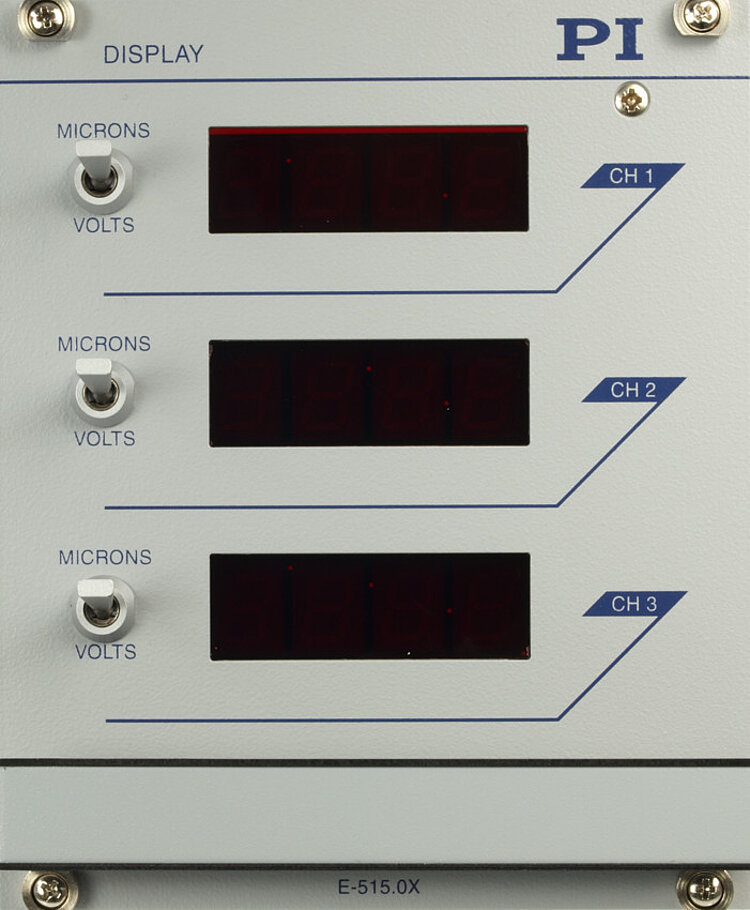

3-channel version of the E-515 display module

Download datasheet specifications

Datasheet

Version / Date

2019-03-26

pdf - 196 KB

Version / Date

2019-03-26

pdf - 196 KB

Version / Date

2019-04-04

pdf - 418 KB

Download

Model	E-515.01	E-515.03
Function	Display module for piezo voltage and position	Display module for piezo voltage and position
Channels	1	3
Display linearity	0.1 %	0.1 %
Display	1 × 3½ digits	3 × 3½ digits
Dimensions	21 HP / 3 RU	21 HP / 3 RU
Mass	0.3 kg	0.3 kg
Operating voltage	E-500 system	E-500 system

Download datasheet downloads

Datasheet

Version / Date

2019-03-26

pdf - 196 KB

Version / Date

2019-03-26

pdf - 196 KB

Version / Date

2019-04-04

pdf - 418 KB

Download

Documentation

E-500 / E-501 Series Modular Piezo Controller: Chassis with power supply, amplifier modules (E-503, E-504, E-505, E-506, E-508), sensor and servo-control module (E-509), display and interface modules (E-515, E-517).

Version / Date

2.16.0 2024-04-26

pdf - 3 MB

English

quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

E-515.01

Display module for piezo voltage and displacement, 1 channel

Add to quote list Remove from quote list

E-515.03

Display module for piezo voltage and displacement, 3 channels

Add to quote list Remove from quote list
